지상국 하드웨어 및 소프트웨어 제품

[Translate to South Korean:] [Translate to English (Int.):] Overview of Ground Station Hardware Products

[Translate to South Korean:] Overview of Ground Station Hardware Products

추적 안테나는 CH7 디코딩, CH10 레코딩, GPS 동기화 시간 소스 및 엔지니어링 클라이언트 워크스테이션을 위한 데이터 배포를 제공하는 지상국에 데이터와 클록(증폭된 RF 출력도 사용 가능)을 제공하는 CH7 원격 측정 데이터를 복구합니다. 이 시스템은 또한 CH7 업링크를 지원하여 지상에서 제어되는 공중 시스템의 구성을 즉석에서 변경할 수 있습니다. 기존 고객 장비와 CH4 스트림, 고객별 데이터 소스, 기존 비디오 소스 등에 대한 지원이 제공됩니다.

[Translate to South Korean:] Cols: Ground Station Hardware Products

Tracking Antenna

VT-012

Dual axis 1.2m parabolic reflector Autotracking Antenna

Parabolic reflector 120cm with clamshell radome
All band L, S and C Band RF link
High Gain L-Band 24dB, S-Band 26dB, C-Band 28dB
Dual Polarization
Down and Uplink
Digital Rotary Scan Head
Dual channel tracking receiver
Semi-Autonomous Autotracking

All band portable autotracking down and up link

Tracking Antenna

VT-006

All band portable autotracking.

Parabolic reflector 60cm with radome
All band L, S and C Band RF Link
Antenna Gain L-Band 17dB, S-Band 21dB, C-Band 25dB
Dual Polarization
Down and Uplink
Digital Rotary Scan Head
Dual channel tracking receiver
Light weight composite construction

All band receiver with recorder function

RF Receiver Recorder

VT-RC-74 DE

All band receiver with recorder function.

Up to Four Complete Receivers
Pre & post detect combiners per channel
Best Source Selector
Integrated digital bit syncs
Ethernet based remote control interface
Single 4U height 19 inch rack mountable chassis

Multifunctional recorder, decom, encoder

Ground Telemetry Processor

TDS-1000

Multifunction Unit with built-in

CH4 Decoder
CH7 Decoder
CH10 Recorder
CH7 Uplink Encoder

Tracking Antenna

VT-020

Dual axis 2m parabolic reflector Autotracking Antenna

Parabolic reflector 200cm with clamshell radome
All band L, S and C Band RF link
High Gain L-Band 28dB, S-Band 30dB, C-Band 32dB
Dual Polarization
Down and Uplink
Digital Rotary Scan Head
Dual channel tracking receiver
Semi-Autonomous Autotracking

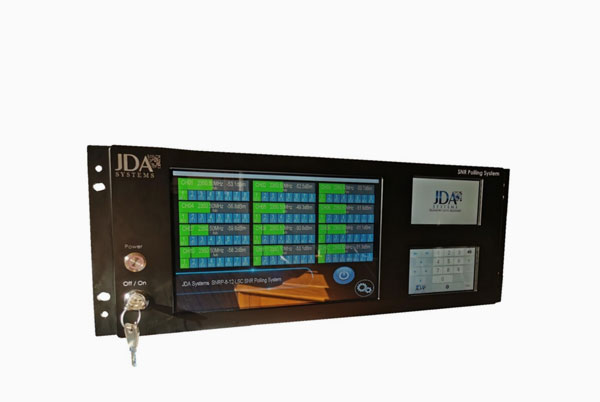

SNR Polling Sensor

SNRP-8-12-LSC

The SNRP-8-12-LSC represents a new way of recovering telemetry signals from multiple test objects on a test range. The unit can take up to 8 antenna inputs and provide the best signals from these to any mix of 12 receiver compatible outputs, all in a single 19 inch rack mountable chassis.

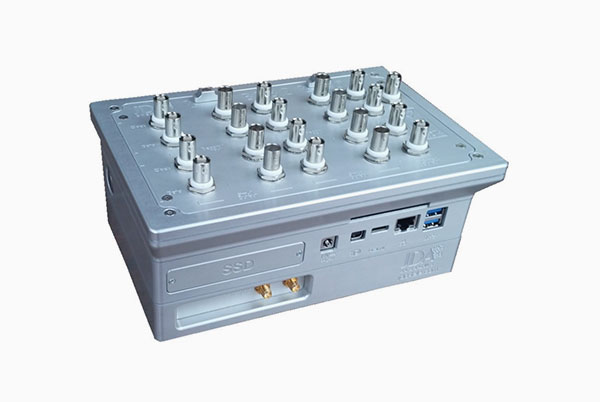

Telemetry Decoding

BOB2

2 Channel Mobile Telemetry Station

Supports the IRIG Standards Including Chapters 4, 7, 8, 9 and 10
Complete Telemetry Ground Station Functionality from Receiver O/P to Post Processing
Dual Independent Bit Sync & Decom Channels for High Speed Operation

Antenna Control Unit

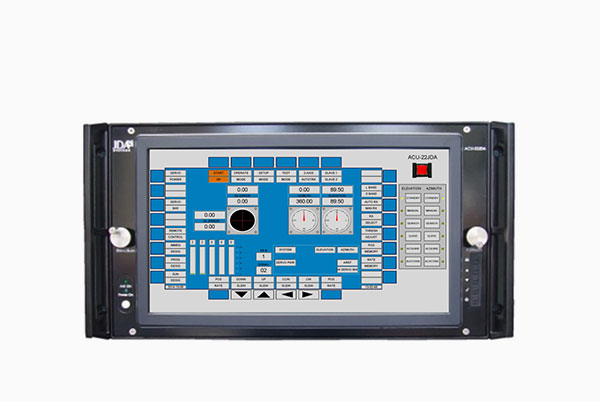

ACU-22JDA

Controls and monitors any JDA Systems antenna

15 inch TFT touch screen display with external display output
Up to 1.5 Gigabit per second sustained data transfer rate
Extensive built-in-test, diagnostic and status reporting software

RF Receiver Recorder

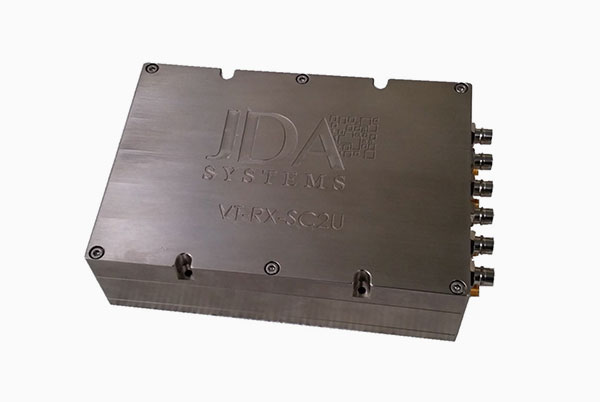

VT-RX-SC 2U

Dual Channel All Band Receiver.

Two Fully Digital Direct Conversion Receivers Per Chassis
All Band Operation of 70MHz to 6GHz with 1KHz tuning resolution
Predetect Combiner & Post Detection Best Source Selector
Compact and low power design

RF Receiver Recorder

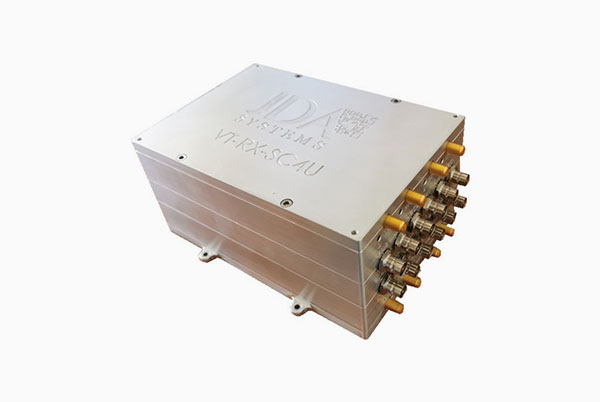

VT-RX-SC 4U

Quad Channel All Band Receiver.

Four Fully Digital Direct Conversion Receivers Per Chassis
All Band Operation of 70MHz to 6GHz with 1KHz tuning resolution
Predetect Combiner & Post Detection Best Source Selector
Compact and low power design

World renowned software for telemetry recover, recording, processing, display, distribution and uplink generation¬¬¬¬¬

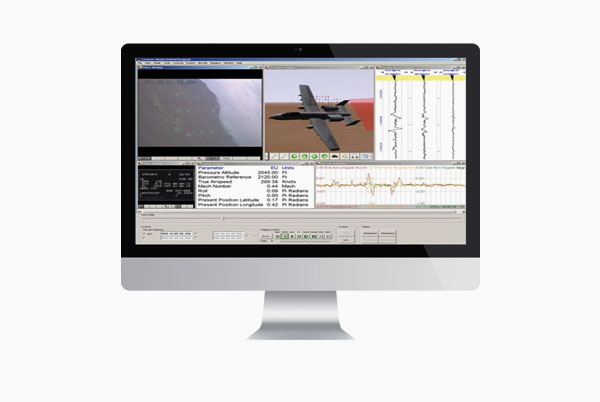

Realtime Telemetry Software

JDA VuSoft

Simultaneous recovery, recording, display and distribution of real-time telemetry data streams
Support of Multiple Streams in Multiple Formats
Modular Architecture
Records Raw and Processed Data
Built-in IRIG106 Chapter 10 Recorder functionality
