Module interconnect bracket for imc CRONOSflex

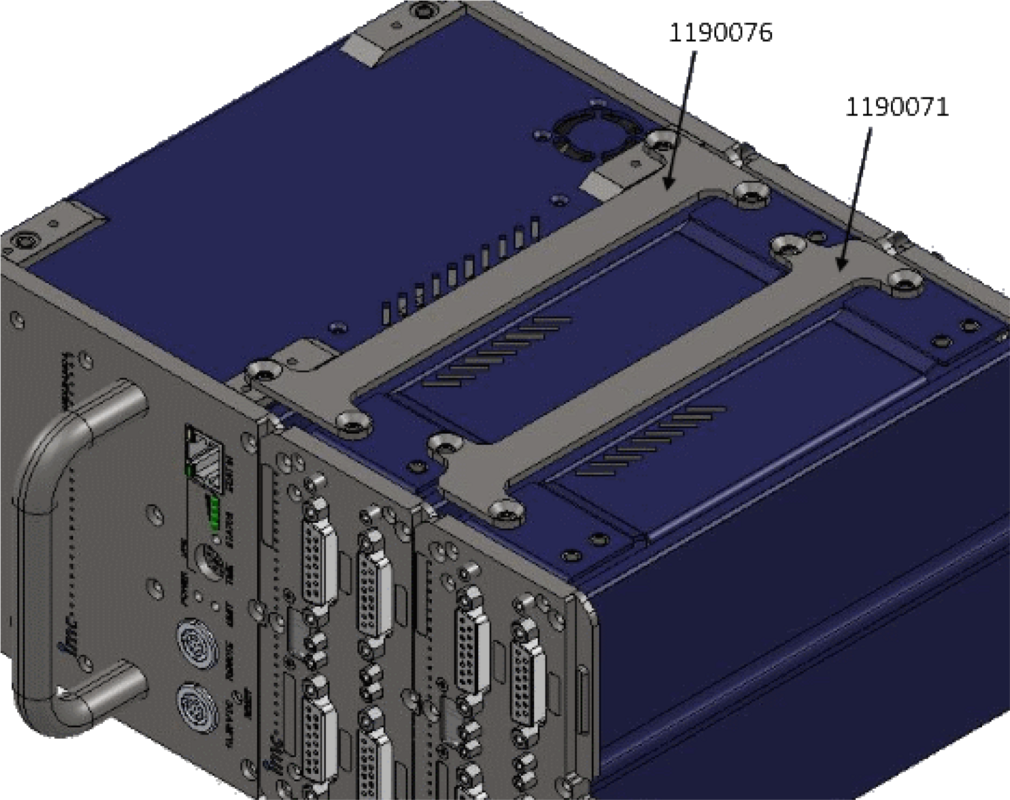

The CRFX interconnect bracket reinforces the imc Click Mechanism of the imc CRONOSflex modules in applications where extreme mechanical stress is expected. The module interconnect bracket must be installed on the cover plate and/or the bottom plate of the imc CRONOSflex module. The following drawing illustrates the two different Interconnect Brackets available.

Compatibility issues may require two different Interconnect Brackets.

The first bracket displayed in the picture is CRFX/BRACKET-CON-GR2-O (11900076) for reinforcing the Click Mechanism of the Power Handle (CRFX/HANDLE-LI-IO-L) and a measurement module. Only this Interconnect Bracket (CRFX/BRACKET-CON-GR2-O) can be used with imc CRONOSflex Handles. The second bracket displayed in the drawing is the CRFX/BRACKET-CON (11900071).

This interconnect bracket CRFX/BRACKET-CON-GR2-O (11900076) can be used with all imc CRONOSflex modules.

Exception: If, for instance a CRFX/ISO2-8 is clicked to the left side of another module, the interconnect bracket CRFX/BRACKET-CON-GR2-0 (1190076) can not be used.

Module interconnect bracket

CRFX/BRACKET-CON

Function: Reinforcement of the click mechanism

Angle: 180° flat

Attachment: 4 x M4

Included accessories:

  • 1x interconnect bracket
  • 4x recessed countersunk flat head screws M4x6

Order Code: CRFX/BRACKET-CON, article number: 11900071

Get price quote

CRFX/BRACKET-CON-GR2-O

Function: Reinforcement of click mechanism

Angle: 180° flat

Attachment: 4 x M4

Included accessories:

  • 1x interconnect bracket
  • 4x recessed countersunk flat head screws M4x6

Order Code: CRFX/BRACKET-CON-GR2-O article number: 11900076

Get price quote
