imc energy sources (batteries)

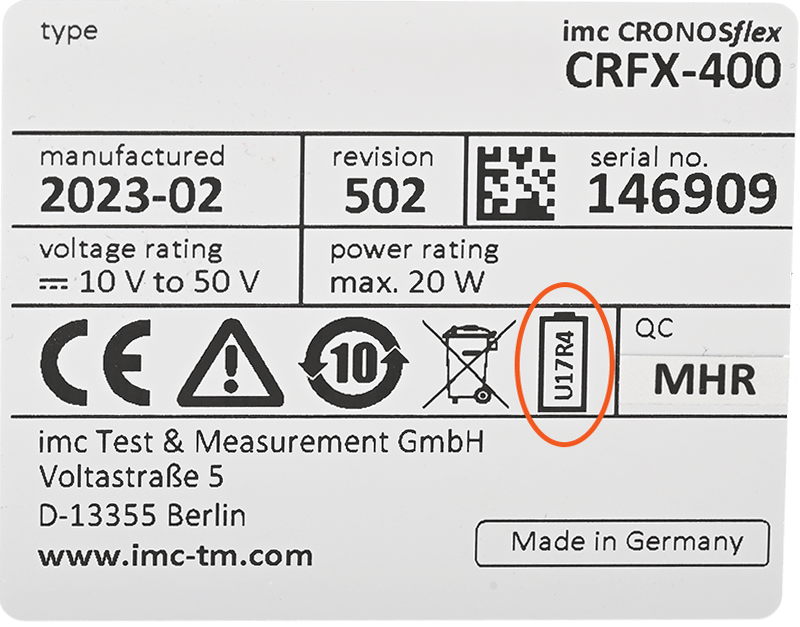

Environmental and safety regulations require the labeling of integrated energy sources. imc measurement devices delivered by imc after November 2022 will have a "battery label" on the nameplate for integrated energy sources.
UxxRxx are represented in this symbolism.
"U" stands for the installed UPS energy sources, if 0 = not installed.
"R" stands for the installed RTC energy sources, if 0 = not installed.
| Code | Use | Technology | Voltage | Capacity | Number of cells | Data Sheet |
|---|---|---|---|---|---|---|
| U0 | UPS | none | none | none | ||
| U1 | UPS | free | upon request | |||
| U2 | UPS | lead gel | 6 V | 1200 mAh | upon equest | |
| U3 | UPS | lead gel | 6 V | 1300 mAh | 4 | Download |
| U4 | UPS | lead gel | 4 V | 500 mAh | 2 - 6 | Download |
| U5 | UPS | lead gel | 4 V | 500 mAh | 2 - 6 | Download |
| U6 | UPS | NiMH | 16,8 V | 3300 mAh | 14 | Download |
| U7 | UPS | NiMH | 16,8 V | 3300 mAh | 14 | Download |
| U8 | UPS | Li-Ion | 10,8 V | 7200 mAh | 3 | Download |
| U9 | UPS | Li-Ion | 14,4 V | 6600 mAh | 4 | Download |
| U10 | UPS | Li-Ion | 14,4 V | 4800 mAh | 4 | Download |
| U11 | UPS | Li-Ion | 14,4 V | 6800 mAh | 4 | Download |
| U12 | UPS | CAPS | 161,6 mWh | 16 | Download | |
| U13 | UPS | CAPS | 80,8 mWh | 8 | Download | |
| U14 | UPS | CAPS | 101,2 mWh | 4 | Download | |
| U15 | UPS | CAPS | 80,8 mWh | 8 | Download | |
| U16 | UPS | CAPS | 70,7 mWh | 7 | Download | |
| U17 | UPS | CAPS | 202,4 mWh | 8 | Download | |
| U18 | UPS | Li-Ion | 7,4 V | 7800 mAh | 2 | Download |
| U19 | UPS | Li-Ion | 7,2 V | 13400 mAh | 2 | upon request |
| U20 | UPS | CAPS | 125 mWh | 2 | Download | |
| U21 | UPS | CAPS | 625 mWh | 10 | Download | |
| U22 | UPS | NiMH | 16,8 V | 3300 mAh | 14 | Download |
| U23 | UPS | NiMH | 16,8 V | 3300 mAh | 14 | Download |
| U24 | UPS | Li-Ion | 3,6 V | 10500 mAh | 4 | Download |
| U25 | UPS | CAPS | 8 | Download | ||
| U26 | UPS | CAPS | 4 | upon request | ||
| U27 | UPS | NiMH | 4,8 V | 2500 mAh | 4 | Download |
| U28 | UPS | CAPS | 2,7 V | 20 mWh | 2 | Download |
| U29 | UPS | Li-Ion | 3,6 V | 3350 mAh | 4 | Download |
| U30 | UPS | Li-Ion | 3,6 V | 2600 mAh | 1 | Download |
| U31 | UPS | Li-Ion | 10,8 V | 2600 mAh | 3 | Download |
| U32 | UPS | Li-Ion | 3,6 V | 2800 mAh | 1 | Download |
| U33 | UPS | Li-Ion | 10,8 V | 2800 mAh | 3 | Download |
| R0 | RTC | none | none | none | ||
| R1 | RTC | LiMn02 | 3 V | 225 mAh | 1 | Download |
| R2 | RTC | LI-Br | 3 V | 195 mAh | 1 | Download |
| R3 | RTC | LI-Mg | 3 V | 230 mAh | 1 | Download |
| R4 | RTC | Li-CF | 3 V | 200 mAh | 1 | Download |
| R5 | RTC | LiMnO2 | 3 V | 125 mAh | 1 | Download |
