LV 시험기 (LV124, LV123, LV148에 따른 인증 시험)

on-board network 적합성을 위한 전기 자동차 부품 테스트

E-Mobility는 전자 부품과 차량의 전기 시스템의 상호 작용이 크게 증가하여 전자 및 메카트로닉 차량 어셈블리 공급업체뿐만 아니라 차량 제조업체도 높은 품질의 요구 사항의 필요에 직면하고 있습니다. LV 124에 설명된 테스트와 같은 국제 표준 및 제조 업체별 테스트 기준을 준수하는 것은 신차 부품 개발의 기본입니다. 이들은 차량 전기 시스템에서 미리 정의된 잡음 신호에 대해 평가됩니다.



imc는 BOLAB Systems와 협력하여 LV 124, LV 123 등에 따라 온보드 네트워크 적합성을 확인하기 위한 솔루션을 제공합니다. BOLAB Systems는 테스트 신호 발생기 및 4상한(4-quardrant) 전압 증폭기 전문업체입니다.

  프로젝트 문의하기

LV 테스트벤치

imc는 다양한 테스트 표준에 따라 다양한 차량 구성 요소를 위한 턴키 방식의 전자동 전기 테스트 벤치 솔루션을 제공합니다.



Objects under test

  • 제어 장치
  • DC/DC 컨버터
  • AC/DC 충전 부품
  • 커넥터 및 케이블
  • 배터리
  • 변환기
  • E-Motors/E-Axles
  • 에어컨 컴프레서 등

수많은 공인된 테스트 표준은 Audi, BMW, Volkswagen, Porsche 및 기타 유명 제조업체와 같은 주요 자동차 제조업체의 대표들에 의해 작성되었으며 제조업체별 실제 테스트 규정을 포함하도록 정의되었습니다.



공조 압축기용 imc 개발 테스트 벤치는 LV 표준 측정 외에도 역기전력 또는 특성 곡선 측정과 같은 개발에 수반되는 엔진 테스트를 수행할 수도 있습니다. 모든 테스트는 완전히 통합되어 imc STUDIO로 수행됩니다.

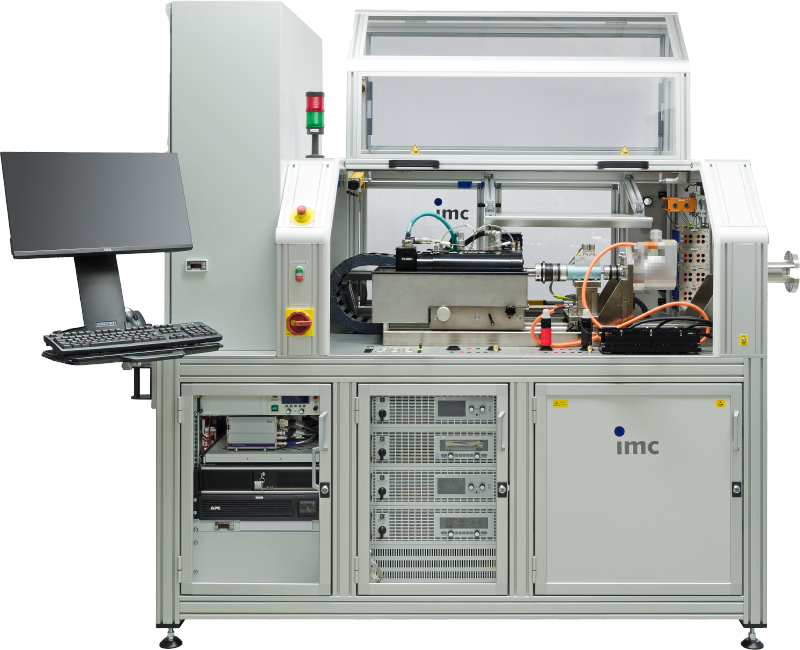

[Translate to South Korean:] LV-Prüfstand für ekmv-Einheiten unter Klimabedingungen



LV test bench for ECC units under climatic conditions





LV test bench for ECC units in RT



Test standards in the LV on-board supply system 12V or 48V

  • LV 124 | LV 148 | VDA 320
  • BMW GS 95024 | BMW GS 95026
  • Mercedes MBN LV 124-1 | Mercedes MBN LV 148
  • Volkswagen VW 80000
  • JLR | PSA | GMW…

Test standards at the HV voltage level

  • LV 123
  • Volkswagen VW 80300…

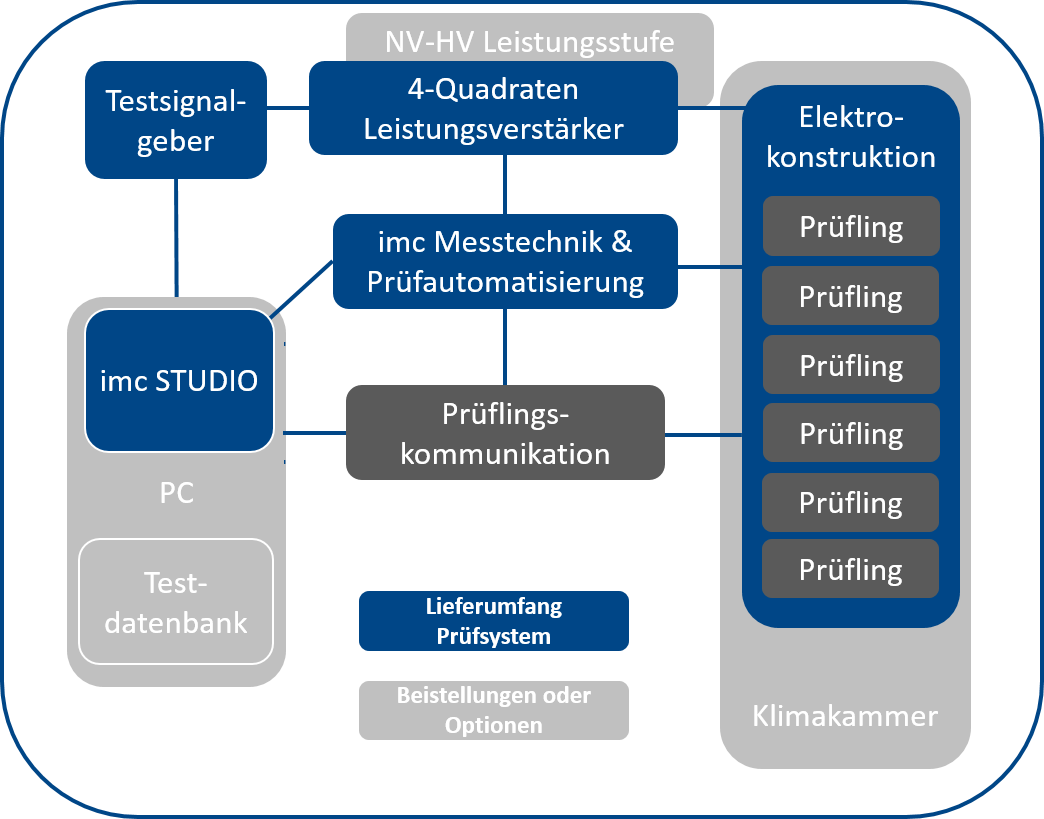

System topology of the imc test bench solution

imc offers turnkey test automation for controlling test sequences and test standards. The imc system offers a modular structure, expansion options and the flexible use of various power output levels and measurement technology. Fully automatic test sequences based on partial tests with flexible test parameters increase your productivity and avoid operating errors. The direct generation of results (test report) and structured data storage make working with the system simple. At the end of the test, the refined evaluation results are made available directly to the end customer.

Advantages of the imc system

  • Testing for varieties of objects under test without complex modifications
  • LV124 / LV148 / LV123 with a uniform system architecture - high cost-savings
  • Fast and precise rise / fall times (approx. 1.5 µs)
  • Entire system is calibrated  with traceability
  • Modular structure allows integration of any power source - cost savings and flexibility when using existing components, e.g. power supply unit

Individual system design

  • Implementation and functionalities according to customer requirements
  • Test facility conformant to CE standard and, if required, safety concept
  • Customer-specific connection technology for the objects under test
  • Flexible and modular electrical construction
  • Integration of existing service components
  • Results database (optional)

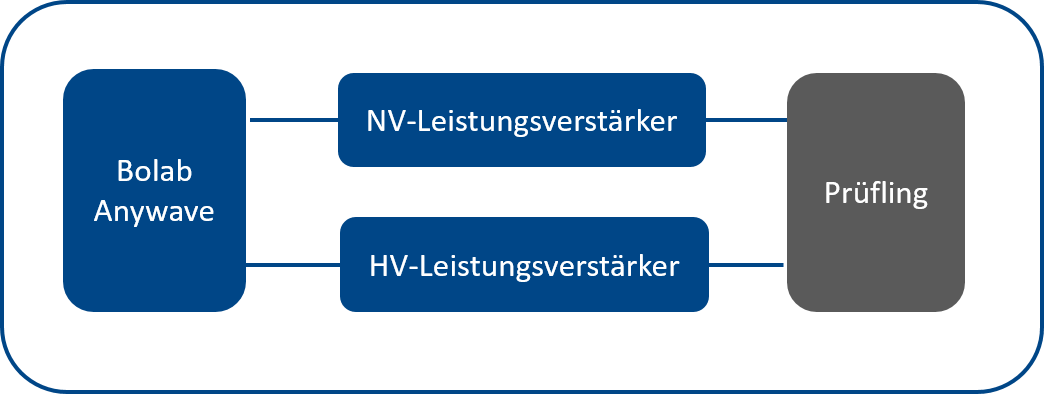

The BOLAB AnyWave control unit operates all types of power supplies as well as 4-quadrant amplifiers via analog interfaces. It has two analog outputs to provide two waveforms synchronously to different power supplies or the 4-quadrant amplifier. Thanks to internal storage, signal profiles of almost infinite length can be simulated. This offers clear advantages compared to solutions with function generators with their limited speed and restricted storage capabilities.

The BOLAB power amplifiers are modular, cascadable 4-quadrant amplifier systems. The system concept allows the on-board supply system side and the HV side to be checked in one solution.

The power supply or 4-quadrant amplifier systems can be cascaded between 500 W and 18 kW with the following properties:

  • DC - 200 kHz bandwidth (small signal bandwidth up to MHz)
  • Output voltage ± 100 Vpk
  • Rise / fall time 100 V / µs
  • USB interface
  • Analog control input ± 10 V for controlling voltage and current
  • Modularly expandable via master-slave mode • Parallel and series connection for two or more devices

Fundamentally, we support all power supplies regardless of manufacturer and integrate the required power components into your solution. Analogue control is a prerequisite. We have already implemented superstructures with numerous power supplies from Delta, Regatron, Heinzinger, EA, etc

 imc offers the appropriate measurement technology for all electrical and physical quantities from HV to bridge and strain gauge  amplifiers.

  • Measurement range of 5 mV to 1000 V
  • Up to 4 MHz per channel and 24 bit digitization
  • Highest precision through individually isolated, filtered and digitized measuring channels
  • Fiber optic measurement technology for objects under test in the HV area (personnel protection and measurement without interference)
  • Interfaces for ECU control devices (CAN / CAN-FD / LIN / FLEX-RAY / XCPoC & XCPoEtherNet)
  • Restbus simulation on the system

imc STUDIO Software

imc STUDIO controls and operates the entire system. One software for data acquisition, visualization, automation, test bench operation, automation and feedback control.

Your benefits at a glance:

  • Metadata - manual input, automated import of Excel sheets or customer-specific DB interface of data describing the experiment
  • Control user interface - general configuration of the devices (e.g. measuring channels ...), setting of the data storage, ...
  • Manual operation - setup and manual individual testing
  • Automatic mode - automated sequence of individual tests with test protocols and structured data storage of all relevant test data
  • Test sequence editor – spread sheet type configuration of an automated test sequence, consisting of partial test tasks or test steps
  • Data visualization - representation of the test device data as well as the associated test steps and measurement data.
  • Evaluation panels - visualization of the test results as an automated "plot" of the respective partial test
Selection of test standard and metadata for test objects
Selection of test standard and metadata for test objects

In the imc STUDIO user interface, the individual objects under test are switched to active and passive and the metadata of the objects under test are managed.

test pulse monitoring during the tests
test pulse monitoring during the tests

The parameters of the individual test types can be adjusted individually or read from Excel sheets.

Clear monitoring of the test pulses makes it easier for the operator to control the entire system.

With imc Test & Measurement GmbH you have a reliable partner for the safe testing of components of all kinds according to the specifications of the vehicle manufacturers or OEMs.
